Maxi-Pulser, a deluxe Beck magnetic pulser

Maxi-Pulser

This is a high powered version of the Magnetic Pulser that has a switch allowing you to select "standard" (normal power) or "modified" (high power) output. This type of device was invented by Robert Beck, and it is the perfect device to accompany the Microbe Electrifier. It has the possible effect of causing the lymph fluid to be more mobile which is important for immunity in the blood because immune cells are created in the bone marrow and transported to the bloodstream by the lymph system. Stagnant lymph (typical with chronic problems) can hinder this normal delivery of necessary immune cells to where they are most needed. This device has more magnetic strength than all other Pulsers on the market.

It delivers a strong momentary magnetic pulse every 2 seconds which penetrates into surrounding tissues (within 4" of the center of the coil in the "standard" setting, and within 7" in the "modified" setting) to induce an electric current there. No sensation is felt at all with the Standard setting. The magnetic strength is less than that of Magnetic Resonance Imaging (which is safe). This device is believed to be safe for use anywhere on the body, as no one has reported it causing problems. It's recommended that it be used daily with the Microbe Electrifier. Beck believed that not using it can allow reinfection afterwards because viruses & bacteria hiding in the lymphatics can eventually travel back into the bloodstream which is the first step for reinfection.

Just 2-3 pulses in each location can be used to try to neutralize any electrical bonding to tissues that microbes may have in any part of the body which would prevent them from circulating in the bloodstream or lymph freely. If this is true then this is essential when fighting a systemic infection. Therefore it would be essential to use a Maxi-Pulser along with a blood electrification device when fighting systemic (whole body) infections in order to force those microbes out of the lymph and into the bloodstream where they can be zapped by blood electrification. According to Patent 6,675,047 (Electromagnetic-Field Therapy Method and Device) "pulsed [electromagnetic] field therapy produces a complex effect on the living organism, because it contributes to an improvement in the energy metabolism, increases the mobility of lymph, enhances the blood supply of capillaries, and, as a consequence, improves nutrition of all tissues of the organism. The pulse field therapy liquidates stagnation of energy in tissues, whereby painful sensations are eliminated."

Maxi-Pulser usage instructions

TECHNICAL DETAILS:

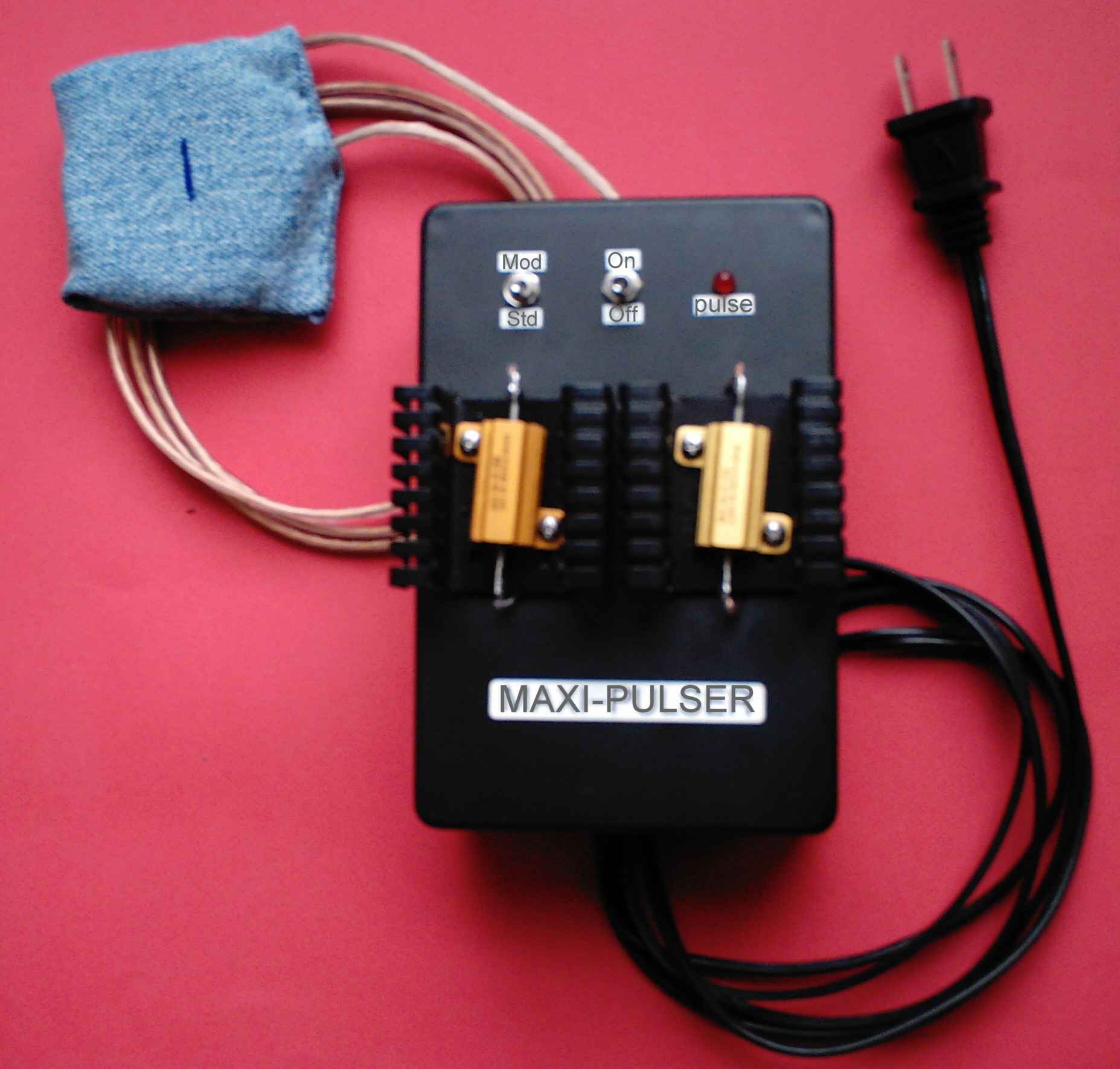

This Maxi-Pulser produces magnetic pulses (from a 2.5mh/18ga/.8ohm coil) that, when switched to "standard", conform to the minimum guidelines given for magnetic pulser strength in the article in Explore More #15 about Robert Beck's original Pulser and Blood Electrifier. Its magnetic strength, in KiloGauss, is more than that of normal Pulsers in the "modified" switch position. This unit pulses automatically every two seconds. You'll know it has pulsed when you see the red diode light up. The coil is covered with thick cotton cloth. An added feature this one has is that the coils negative north pole is marked which allows you to always pulse yourself with that negative magnetic polarity for possible added effectiveness against microbes (according to Dr. Philpott). The unit measures 3" wide, 2.5" tall, and 6" long. It can be powered by 115 or 230 volts AC. Please specify your country and its voltage (115 or 230) when ordering. Whether the frequency in your country is 50 or 60 hertz does not matter. The AC plug will match your countries requirement (UK, EUR, AUS, N.Amer).

	capacitor voltage	capacitance	Joules	KiloGauss magnetic strength	milliseconds pulse width
Maxi-Pulser modified	450	550uf	55.7	35.3	3.7
Maxi-Pulser standard	350	550uf	33.6	27.5	3.7
typical Magnetic Pulser	350	600uf	36.7	29.4*	3.9

(*Using the same coil as the Maxi-Pulser. It would be only 19 with the coil that Beck used to recommend which was a 2.5mh, 14ga, .8ohm, 270 turn, 6 cm^2 coil core area)

Peak Gauss = (Coil Inductance x Peak Amps x 10^8)/(N x A)

The formula above is for calculating the magnetic strength in KiloGauss where the coil inductance is in Henries, Peak Amps is the maximum amperage of electrical current flowing through the coil, 10^8 is 10 to the eighth power, N is the number of turns in the coil, and A is the cross-sectional area of the air-core section of the coil in square centimeters.

Our coil has 2.5mH, has 255 turns, and has a cross-sectional area of 4.5 cm^2. I calculate 161 Peak Amperes with the modified output. Substituting we get:

Bpeak = (.0025 Henries x 161 Amps x 10^8) / (255 Turns x 4.5) = 35,076 Gauss

Below is the formula for calculating the energy dissipated by the coil in Joules. C is the capacitance in farads, and V is the capacitor voltage.

J = (C x V^2)/2

Joules = (.00055 x 450 x 450)/2 = 55.7

If other manufacturers, which all use 350 volts or less to power the output coil, claim more magnetic output than mine (which uses 450 volts), then they have either calculated wrongly or are just lying*. Also, I have searched high and low for the best air core inductor to use in this application and do use one of the best. Everyone who has tried my Pulser and compared it to the others always tell me that mine is the most powerful. You can spend 50% more to buy the other less powerful ones but I encourage you to give mine a try. If you don't like it then you can return it for a refund. But I'm sure you'll be happy with it.

RESEARCH for the ideas behind this device.

* The most popular Pulser now falsely claims 43,100 Gauss (43.1 Kgauss). They falsely create the calculated amount with a false cross sectional area for their coil, and a false peak amperage amount. If you go to Barry's Inductor Simulator you will see the impossibility of having a 2.5mh, 270 turn, .5 ohm coil with only a 3.2cm^2 cross sectional area. With 270 turns of the most optimal wire gauge (18) you always get around .8 ohms, not .5 ohms. If you go to Barry's amperage calculator and input these values (using the same coil I use); 350 volts, 600uf capacitance, .8 ohms, 2.5mh coil inductance, you will get 143 peak amps, not the claimed 150 amps. Using these values you can calculate a maximum gauss output of only 29,400 Gauss (29.4 Kgauss) and 36.7 Joules.
